RPX™ Power Distribution Unit (PDU)

RPX™ Power Distribution Unit (PDU)

$3,200.00 USD
$3,200.00 USD
Sale Sold out

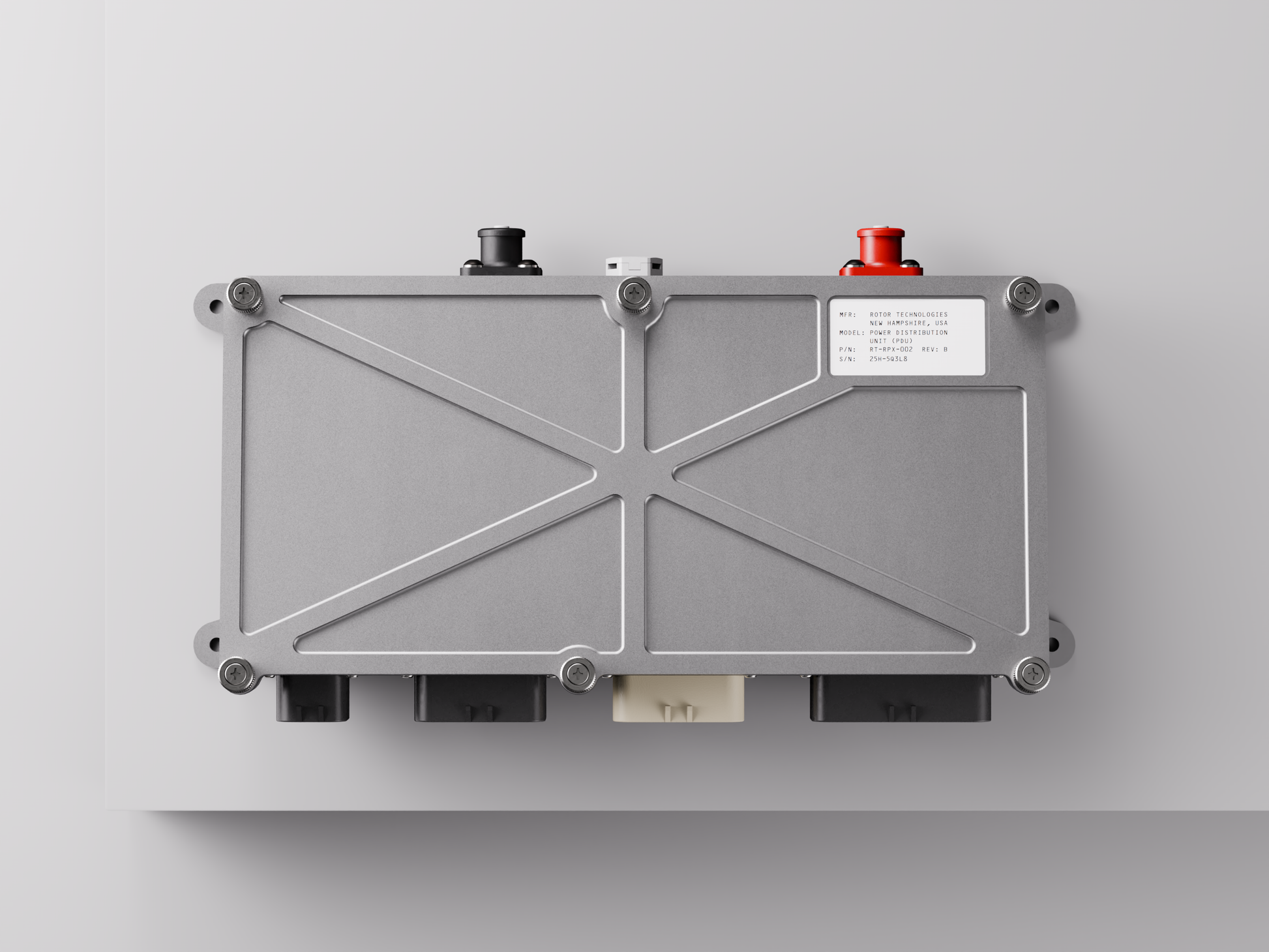

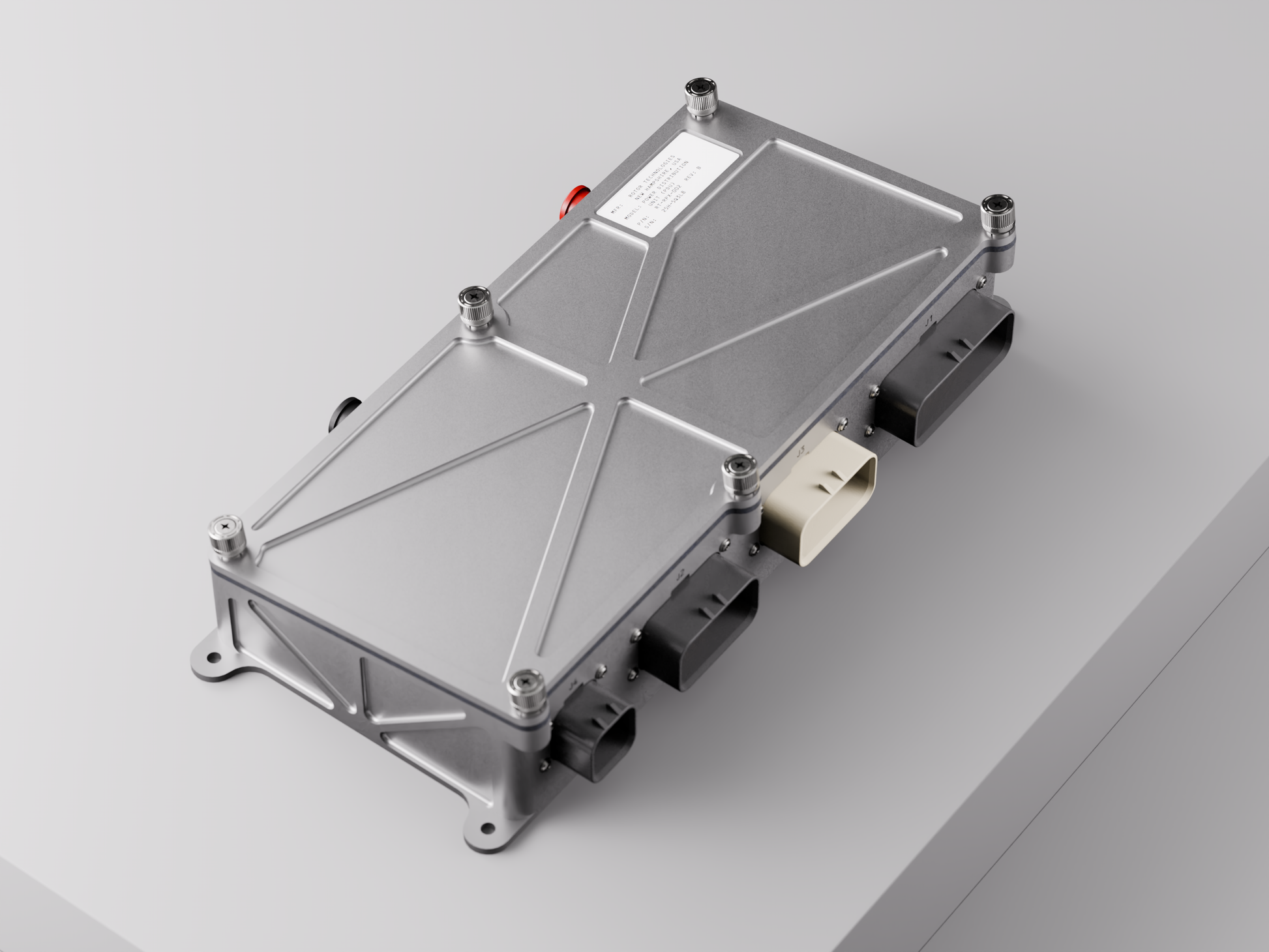

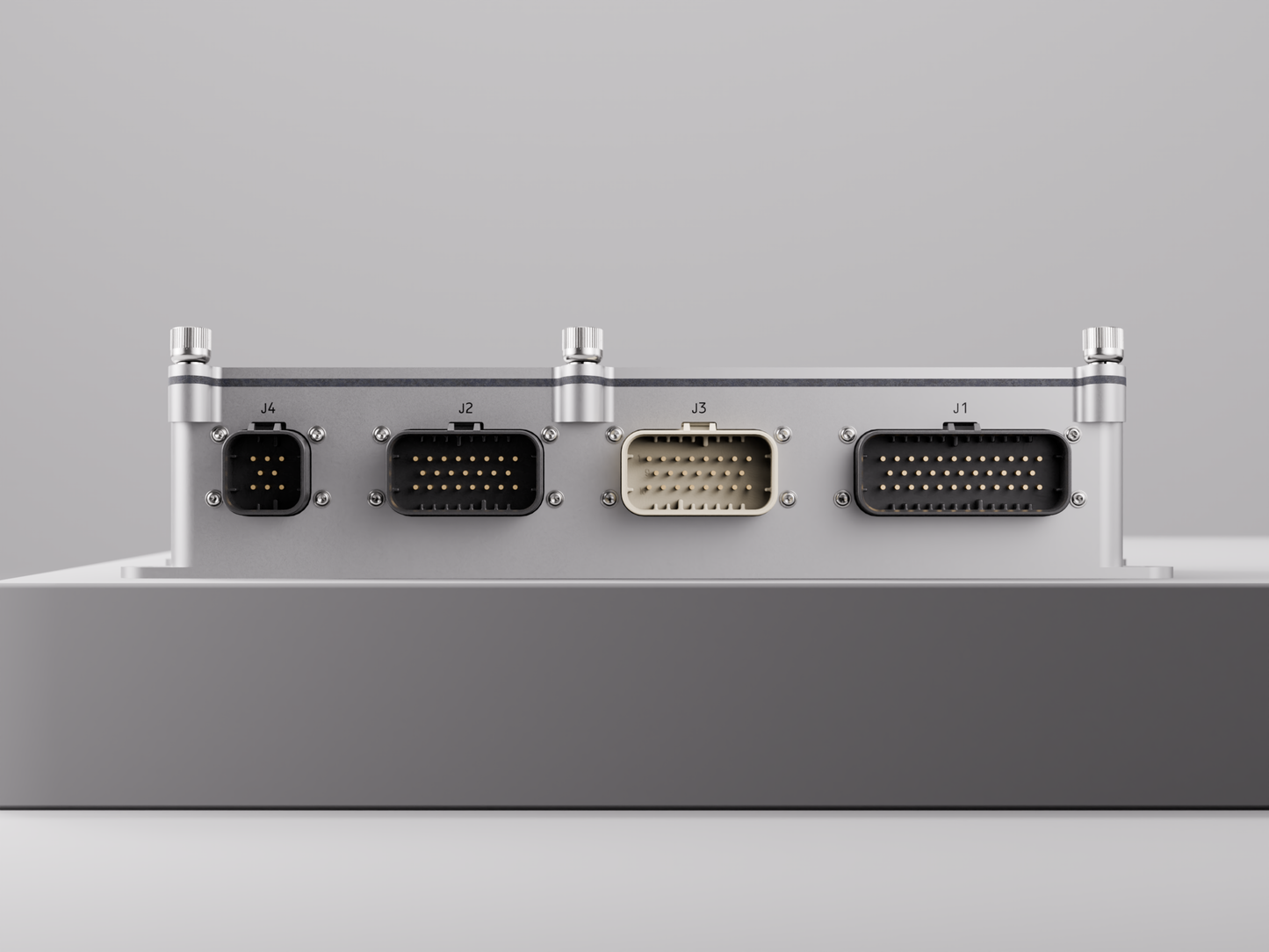

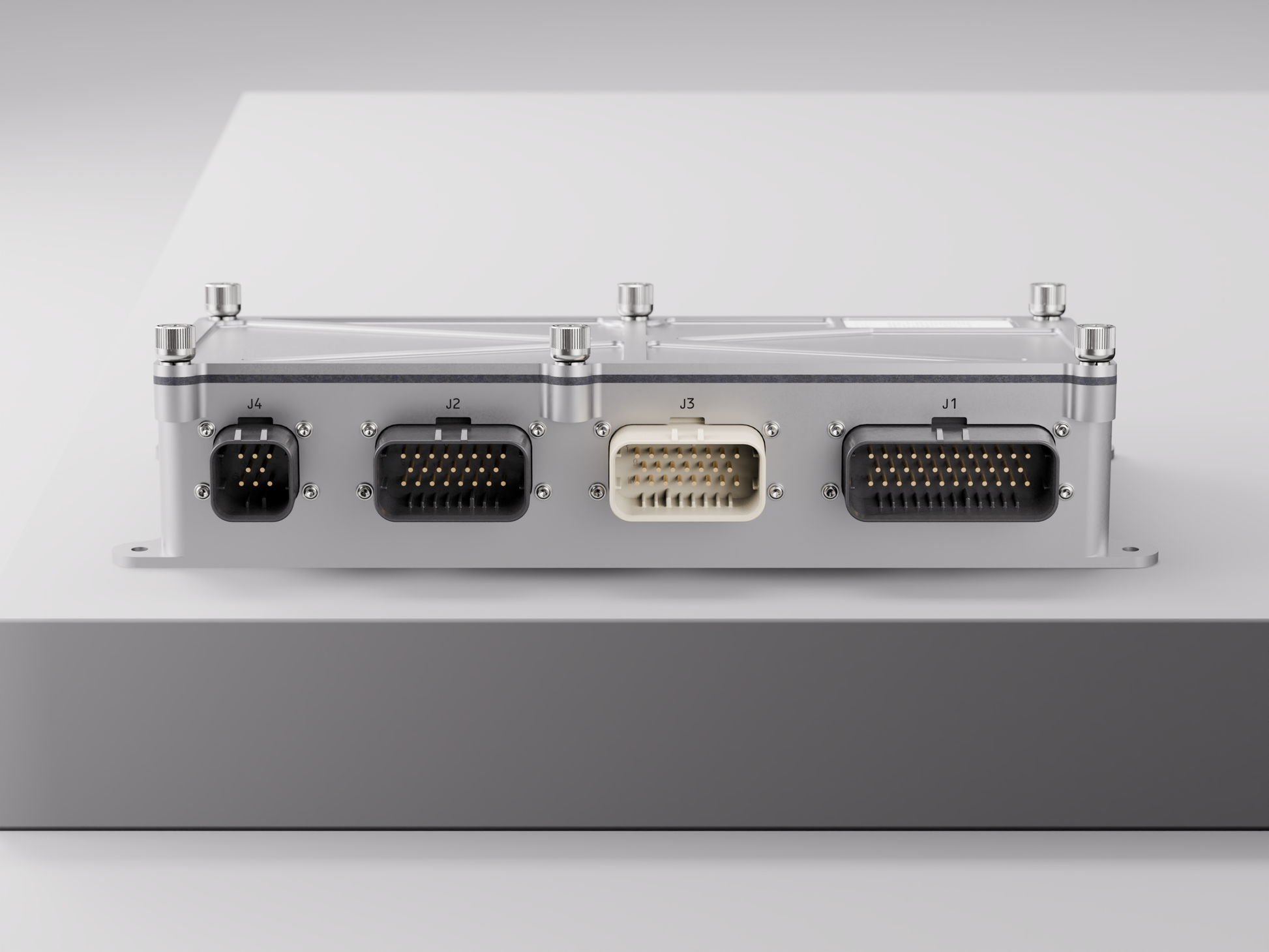

The RPX Power Distribution Unit (PDU) is an aviation power management unit that distributes DC electrical power via two 24/28V power rails. It has an active monitoring system and replaceable blade fuses.

Key Features

  • 12 to 32V battery or alternator input.
  • Power filtering and monitoring.
  • 24 individually fused rails.
  • Max power output 300W.

What's Included

  1. Power Distribution Unit
  2. Mounting Hardware
  3. Debug Harness

Aircraft harnessing sold separately.

Technical Specifications

Specification Value
Dimensions 13.7 x 6.1 x 2.8 in
Weight 2.66 lb
Enclosure Material Anodized Aluminum
Mounting 4x 0.2" Diameter Mounting Holes
Environmental Qualification DO-160G Cat U2 (Helicopter)
Operating Temp -45 to +70°C
Input Voltage 28VDC Typical
