RPX™ Triplex Flight Computer (TFC)

RPX™ Triplex Flight Computer (TFC)

$19,500.00 USD
$19,500.00 USD
Sale Sold out

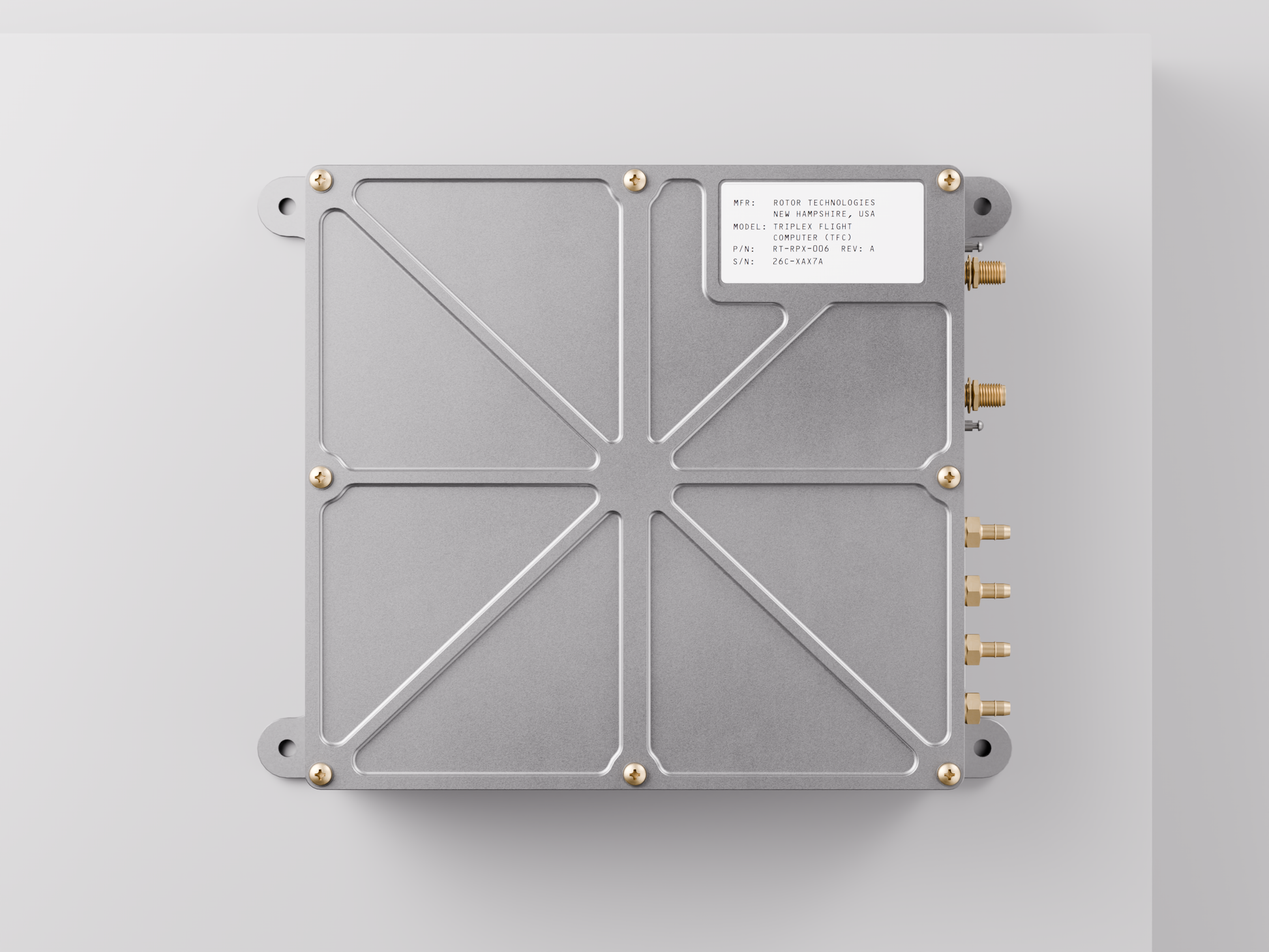

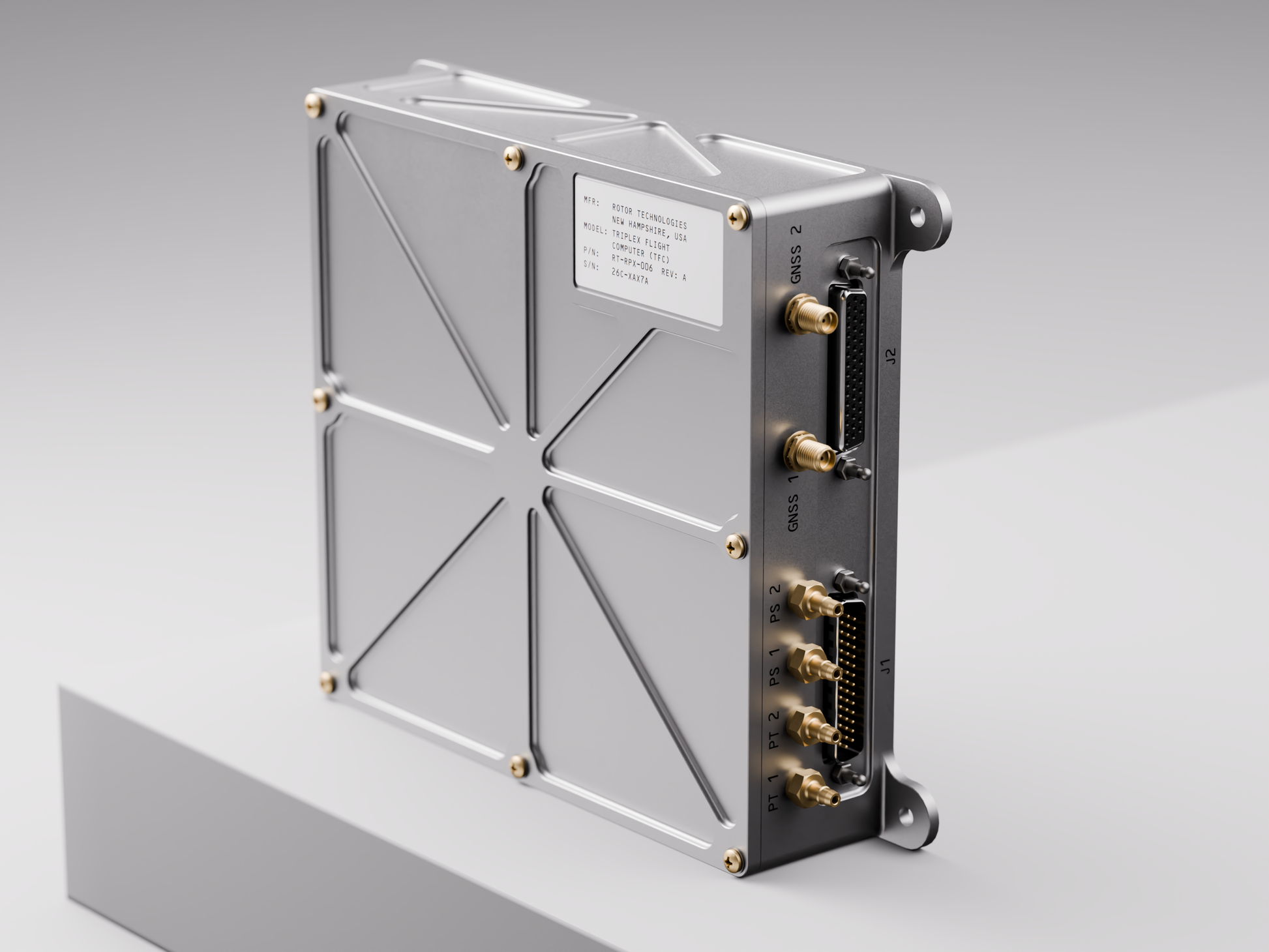

The RPX Triplex Flight Computer (TFC) is a triplex-redundant embedded computer designed for flight-critical applications. It is designed to meet ASTM F3298-24 for the design and construction UAS and ASTM F3657-23 for verification of UAS.

Key Features

  • Fail-operational triplex voting CPU architecture.
  • Triplex INS, dual GNSS, dual air data.

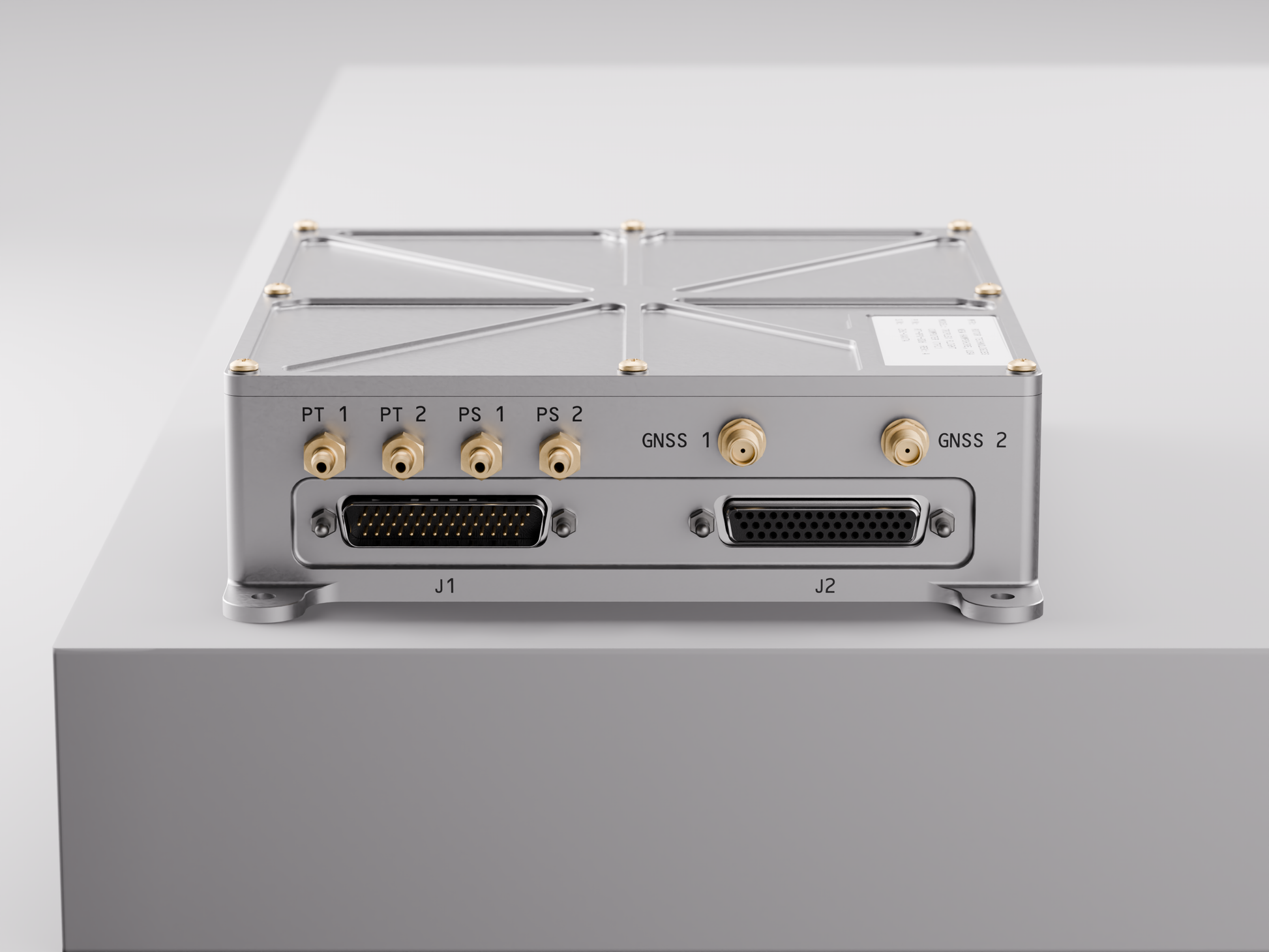

  • RS232, RS485, CAN, ethernet connectivity.
  • Redundant power inputs.

What's Included

  1. Triplex Flight Computer
  2. Mounting Hardware
  3. Debug Harness

Aircraft harnessing sold separately.

Technical Specifications

Specification Value
Dimensions 7.2 x 8.0 x 1.9 in
Weight 2.4 lbs
Enclosure Material Anodized Aluminum
Mounting 4x 0.2" Diameter Mounting Holes
Environmental Qualification DO-160G Cat U2 (Helicopter)
Operating Temp -45 to +70°C
Input Voltage 12 to 32V
